Flanges, Faced and Drilled to Spec.

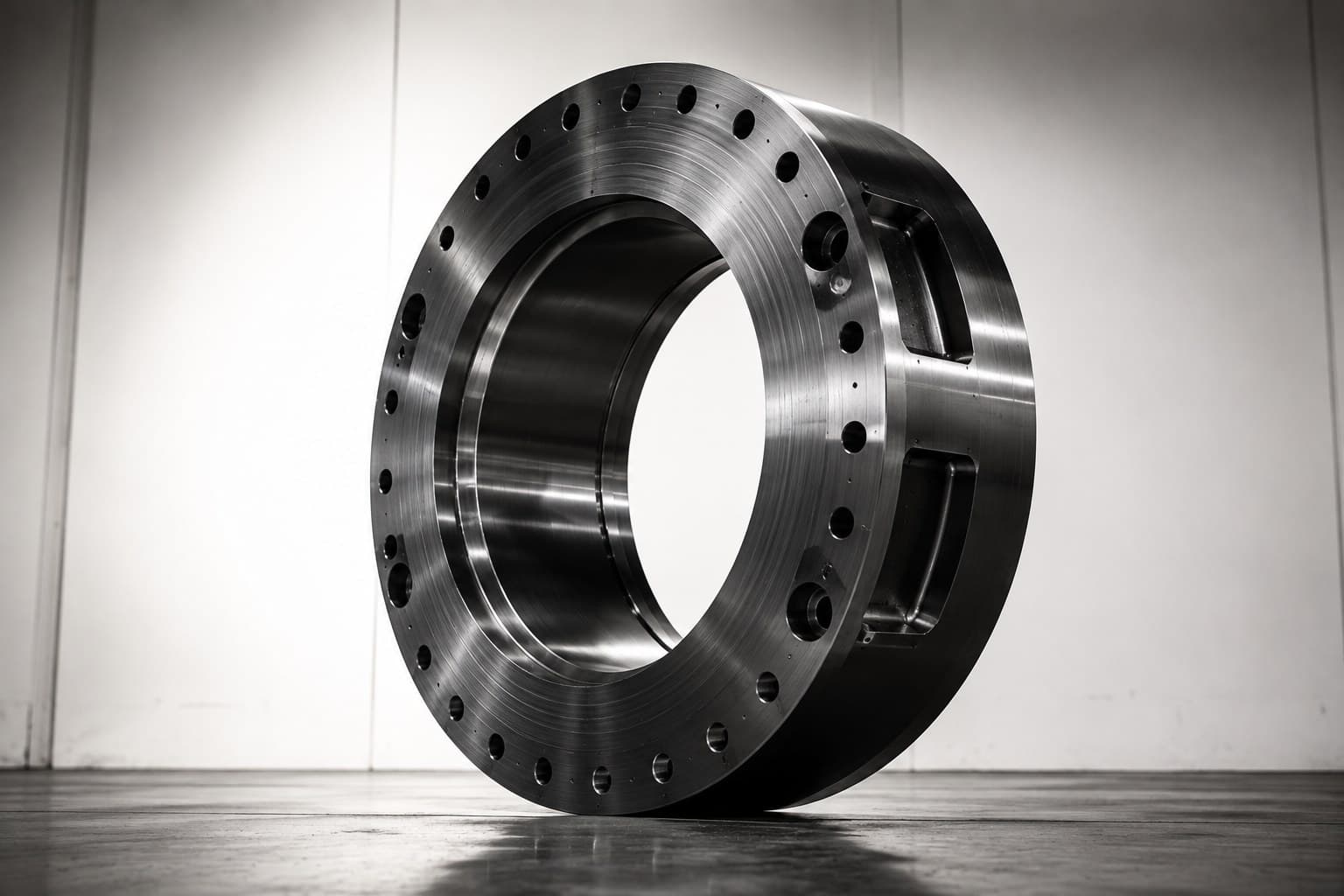

Machine Tech Services machines custom flanges and flanged connections to your drawing, including bolt circles, faced sealing surfaces, counterbores and large-diameter work up to approximately 40 inches.
- Category /
- Turned Components
- Materials /
- Carbon steel (1018, 1045, A36), Alloy steel (4140, 4340), Stainless steel (304, 316, 17-4 PH)
- Process /
- Facing and turning · Boring
- Also called /
- weld neck flanges
Flanges look simple until the bolt circle has to line up with something already in the ground. Hole position, face flatness, sealing surface finish and overall diameter all have to be right the first time.
We machine flanges from plate, bar or forgings — facing, boring, drilling the bolt pattern and cutting sealing features. Large-diameter flanges are handled on our larger turning and boring capacity.
Custom, non-standard and obsolete flange geometry is routine work for us. If you have a mating part rather than a print, bring the mating part.
How We Make It
- 01Facing and turning
- 02Boring
- 03Bolt-circle drilling
- 04Sealing-surface and groove machining
- 05Inspection
Materials
- Carbon steel (1018, 1045, A36)
- Alloy steel (4140, 4340)
- Stainless steel (304, 316, 17-4 PH)
- Aluminum (6061, 7075)
- Brass and bronze
- Engineered plastics (UHMW, Delrin, PEEK)
Industries We Make These For
Flanges — Questions We Get
Can you machine a flange that does not match a standard size?
- Yes. Non-standard and custom flanges are routine work at Machine Tech Services. We machine to your drawing, and if you do not have one we can work from the mating component or an existing flange.
What is the largest flange you can machine?
- We machine flanges up to approximately 40 inches in diameter. Send the drawing or dimensions and we will confirm before quoting.
Need this part made?
Send the drawing, a sample or a photo with dimensions. One piece or a production run.
